Overview

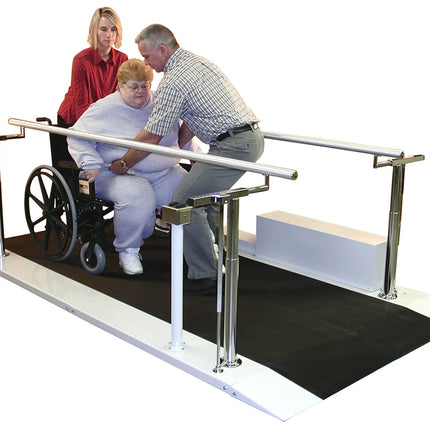

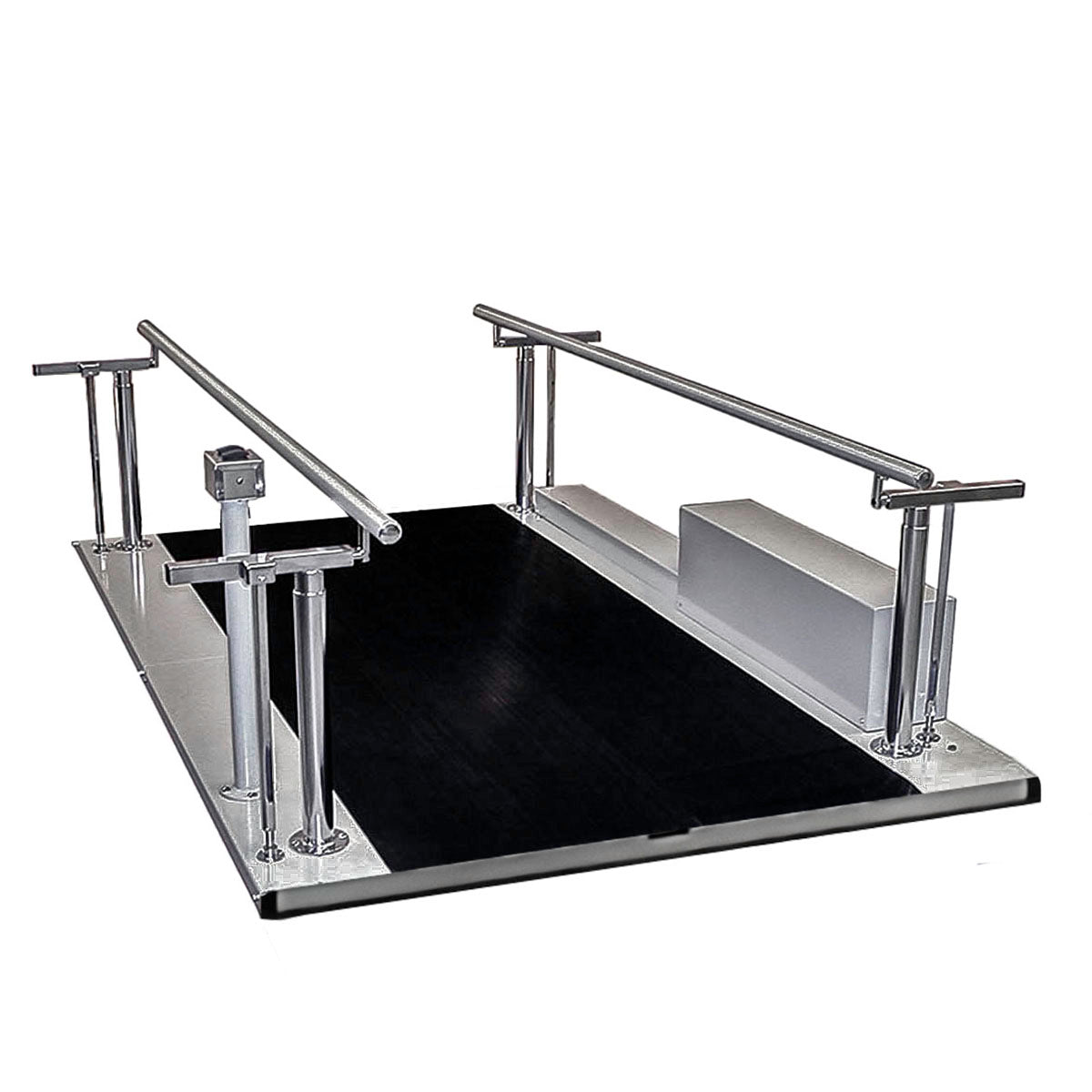

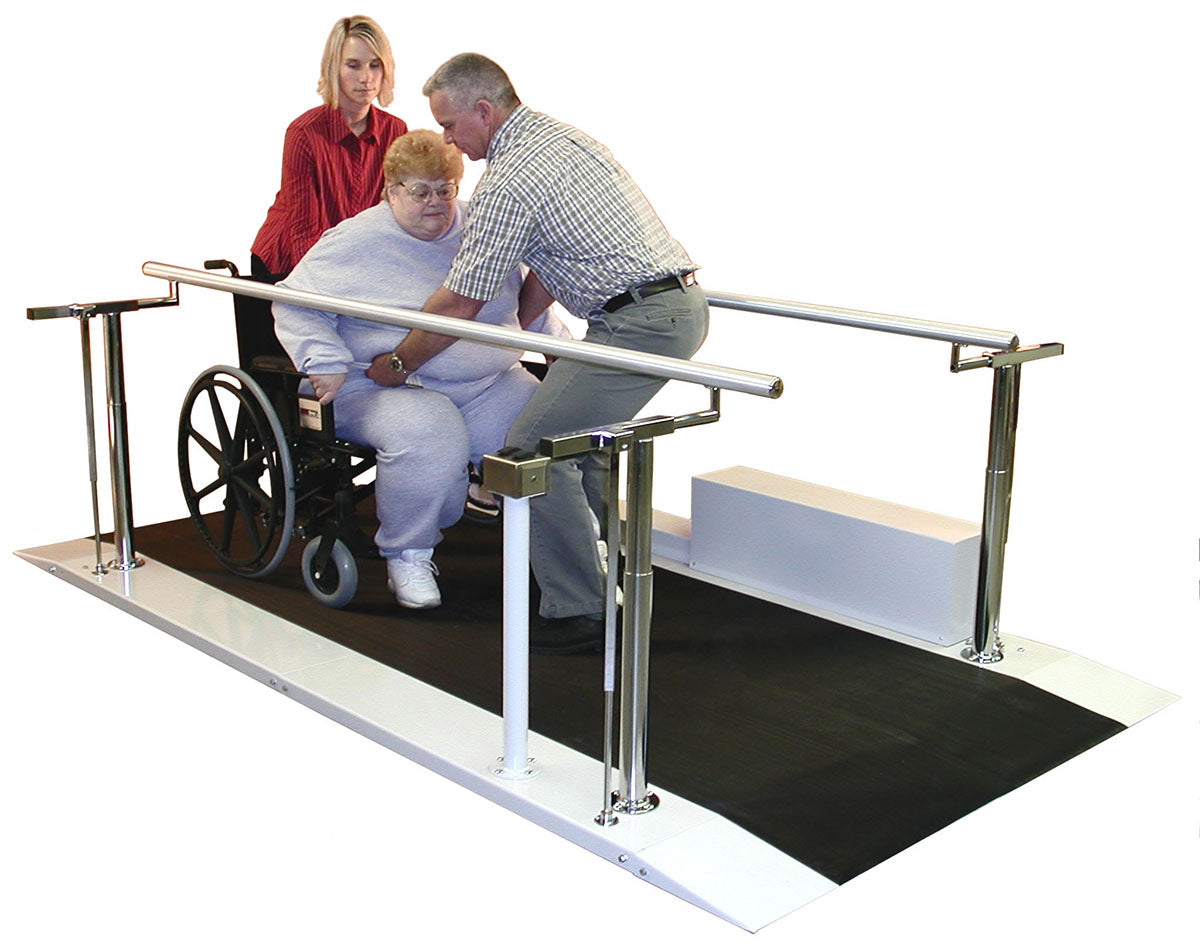

Tri W-G Bariatric Motorized Parallel Bars — Engineered for larger patients with a 1,000 lb. weight capacity, these bariatric parallel bars deliver the same premium performance and state-of-the-art engineering as the standard line, scaled to accommodate a wider platform and greater load. Height- and width-adjustable with fingertip controls for individual or simultaneous operation. Designed for professionals in clinics and multi-user environments. Available in 6′, 8′, 10′, 12′, and 16′ platform lengths.
Features
-
1,000 lb. Weight Capacity: Heavy-duty construction supports bariatric patients with exceptional stability.
-
Motorized Height & Width Adjustment: Fingertip controls allow individual or simultaneous operation.
-
Wide Platform: 54″ wide platform with 37.5″ between uprights for added patient comfort.
-
Non-Skid Black Mat: Sized to fit each specific model’s width and length.
-
Anodized Aluminum Handrails: 1.625″ diameter with chromium-plated supports.
-
10-Gauge Steel Base: 1.75″ tall for maximum stability.
-
Handrail Height Range: 25.5″ to 39.75″ to top of bar.
-
Width Adjustment Range: 21.5″ to 30.5″ between uprights.
-
Frame Finish Options: Pearl Gray (standard) or Porcelain (optional).
-
Optional Accessories: Tapered platform extensions sold separately. Ramps not included.
Specifications
-
Weight Capacity: 1,000 lbs
-
Platform Width: 54″
-
Width Between Uprights: 37.5″
-
Handrail Diameter: 1.625″ anodized aluminum
-
Base Frame: 10-gauge steel, 1.75″ tall
-
Frame Finish: Pearl Gray (standard) or Porcelain (optional)
-
Lead Time: 1 week
-
Made in: United States
