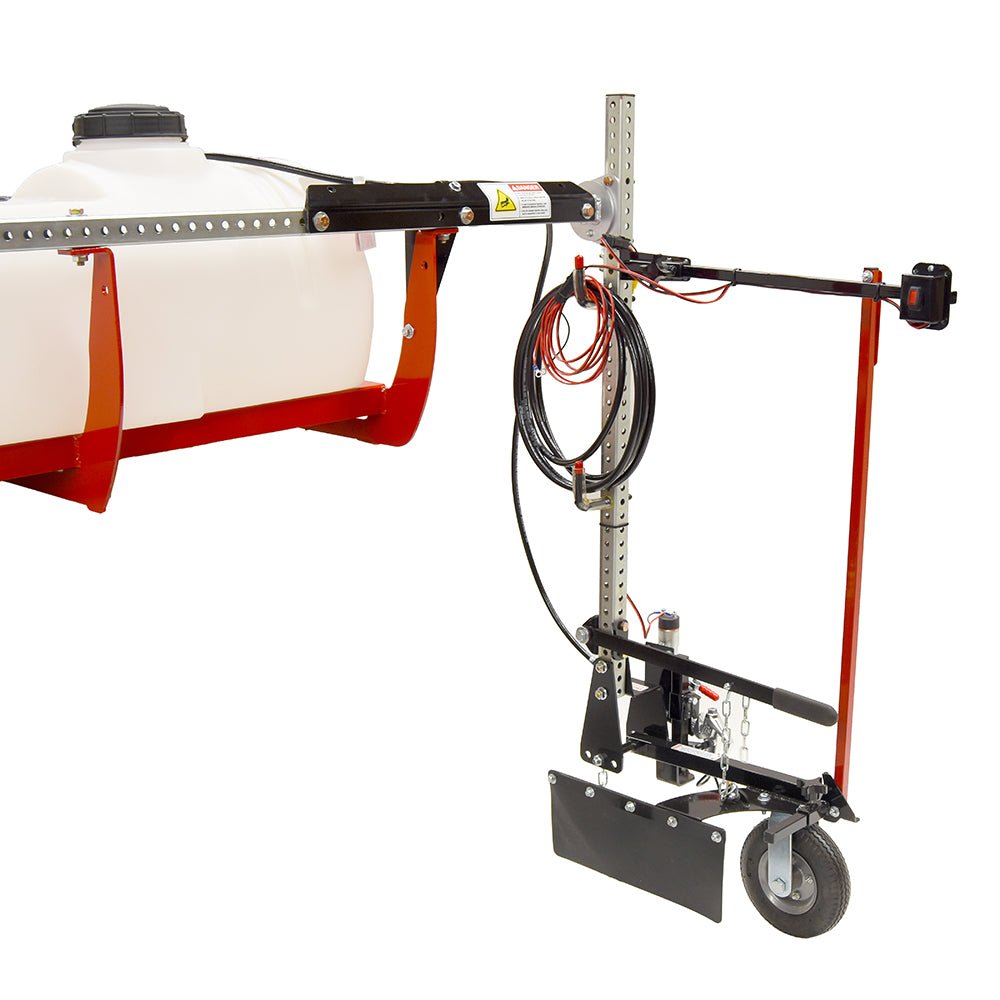

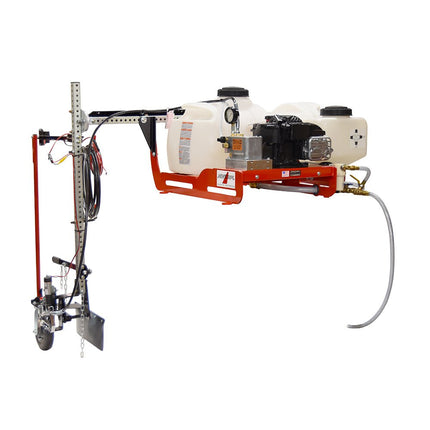

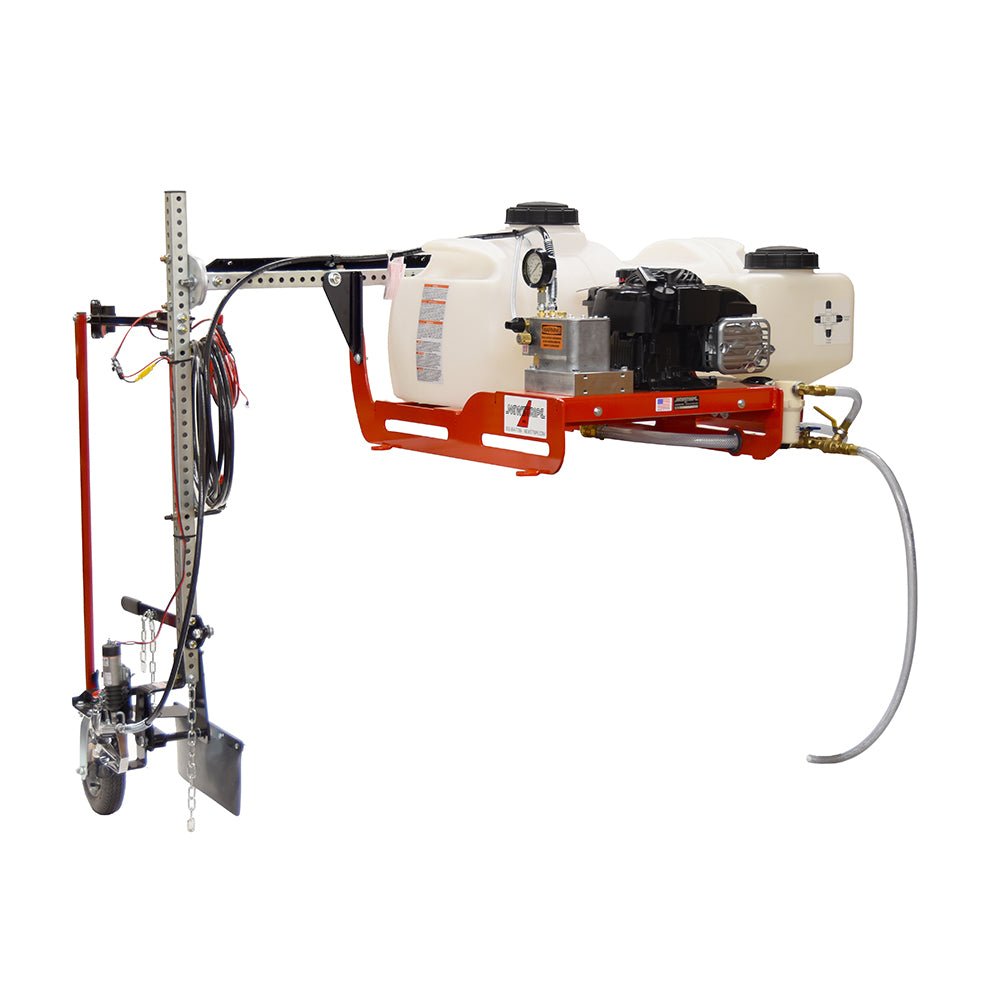

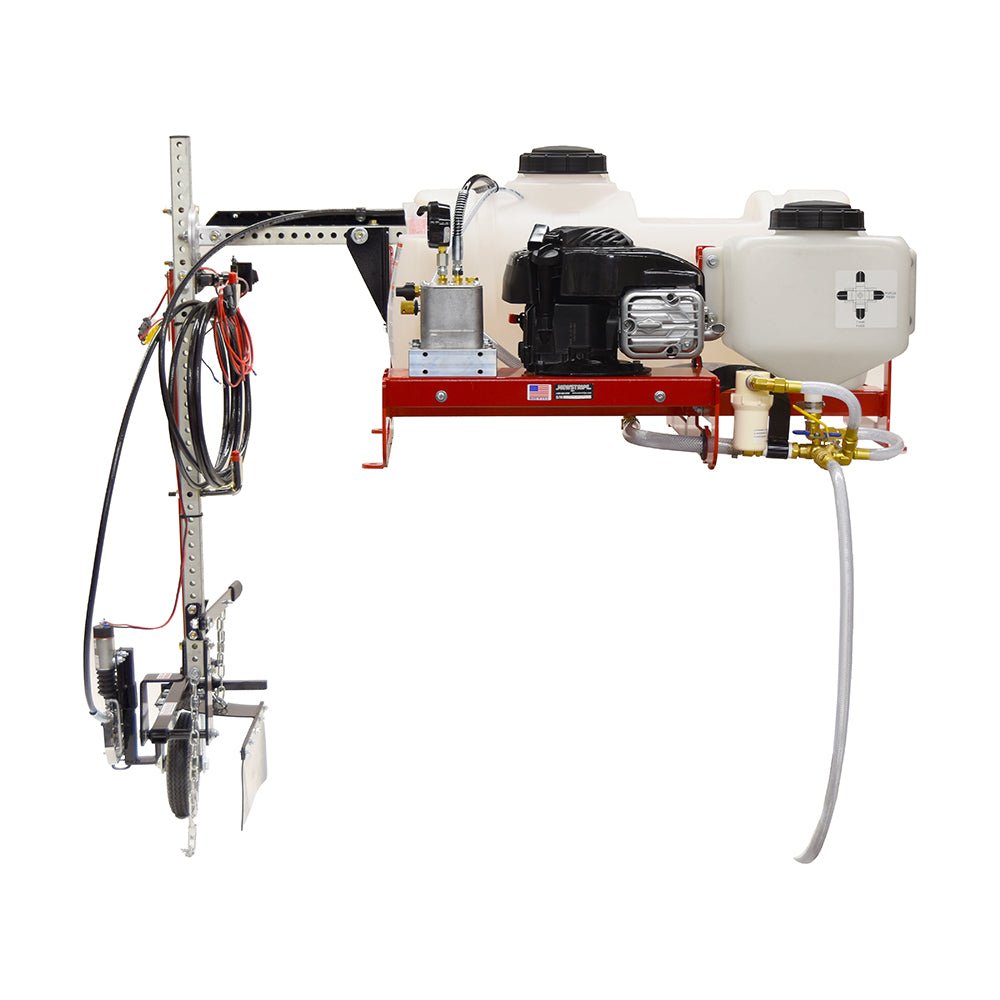

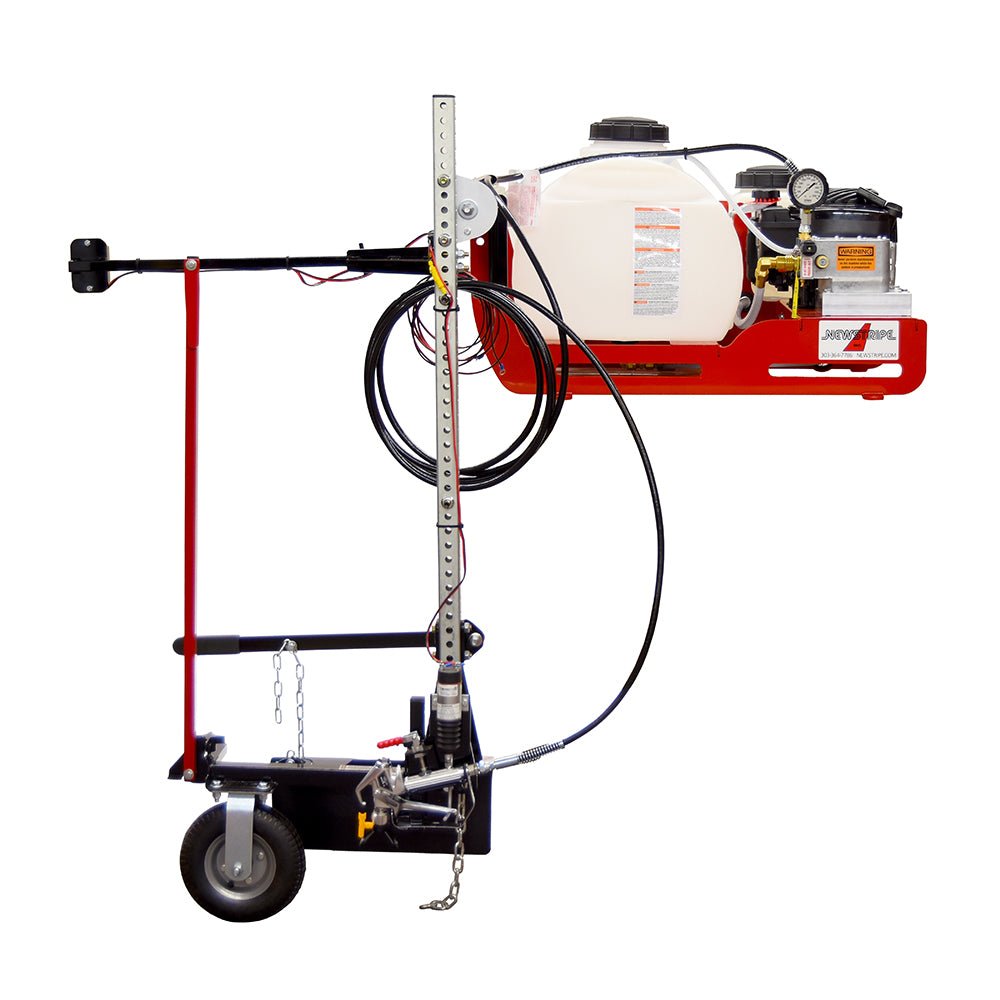

Turn your existing UTV into a high-speed riding field striper — no second vehicle purchase required. The Newstripe LineRider Deluxe slides into the bed of most John Deere, Kubota, Ranger, and other popular UTVs in under 10 minutes, letting you stripe athletic fields at up to 8 mph — three times faster than a walk-behind — while using the bulk athletic paint you already buy.
Who It's For
Athletic complexes and parks departments that already own a UTV and want to maximize its value
Head groundskeepers managing large facilities where striping speed is the top priority
Operations looking for the most cost-effective path to riding-speed striping
Why the LineRider Deluxe
Stripe up to 8 mph — 3× faster than typical walk-behind stripers
25-gallon paint tank — handle large jobs without constant refills
0–3,000 psi high-pressure airless pump (0.44 gpm) — works with all bulk athletic paint, no proprietary formula required

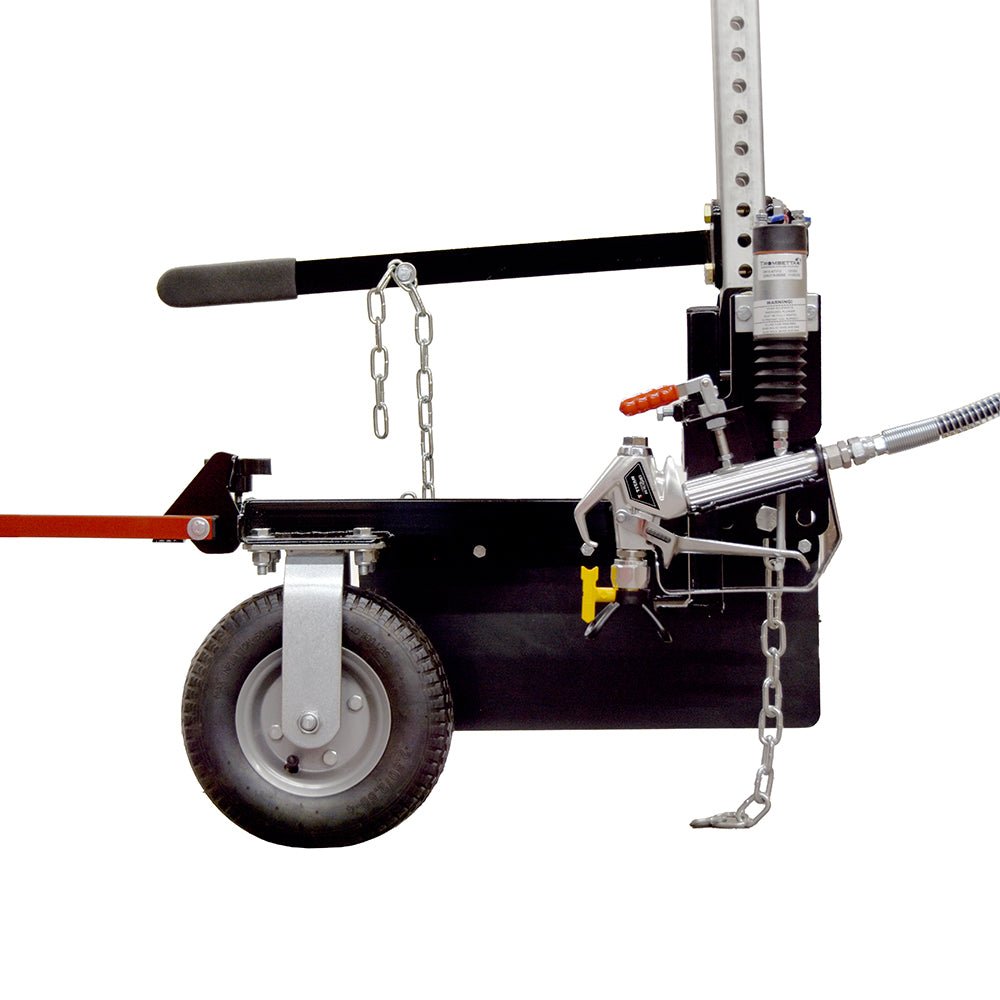

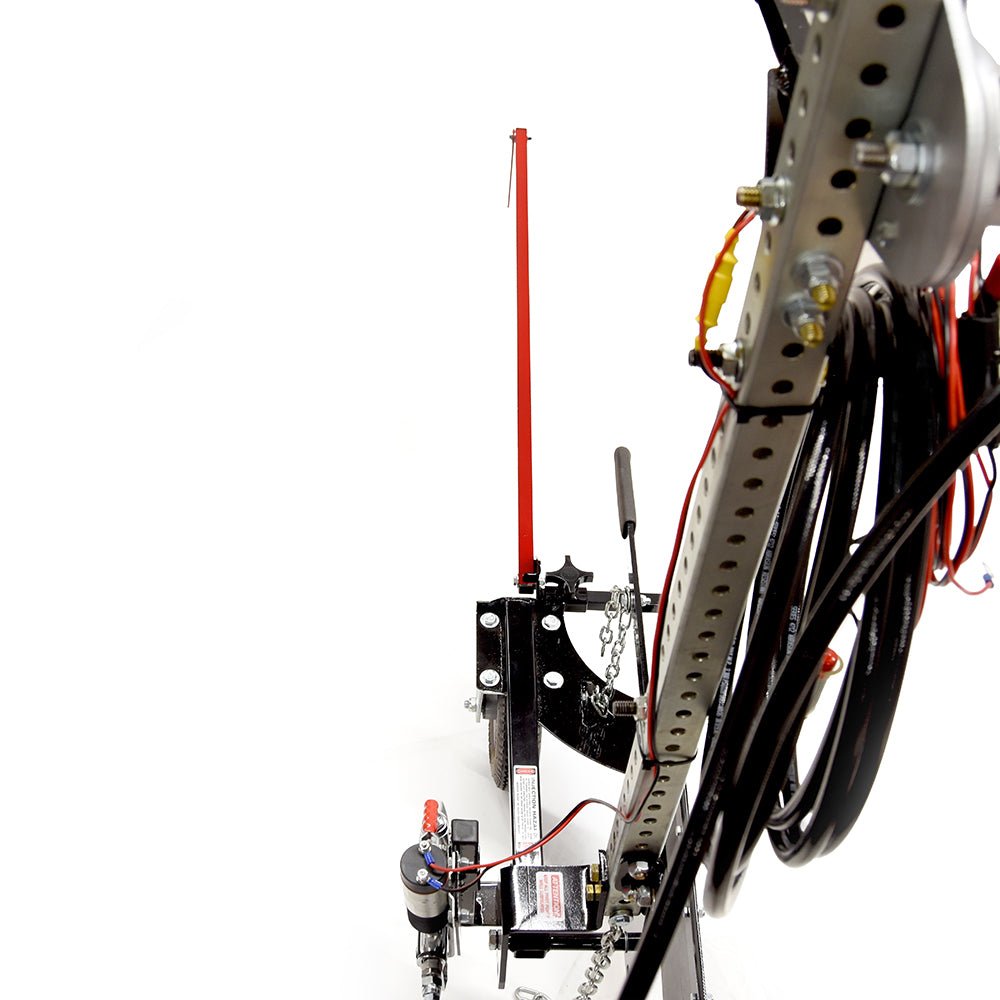

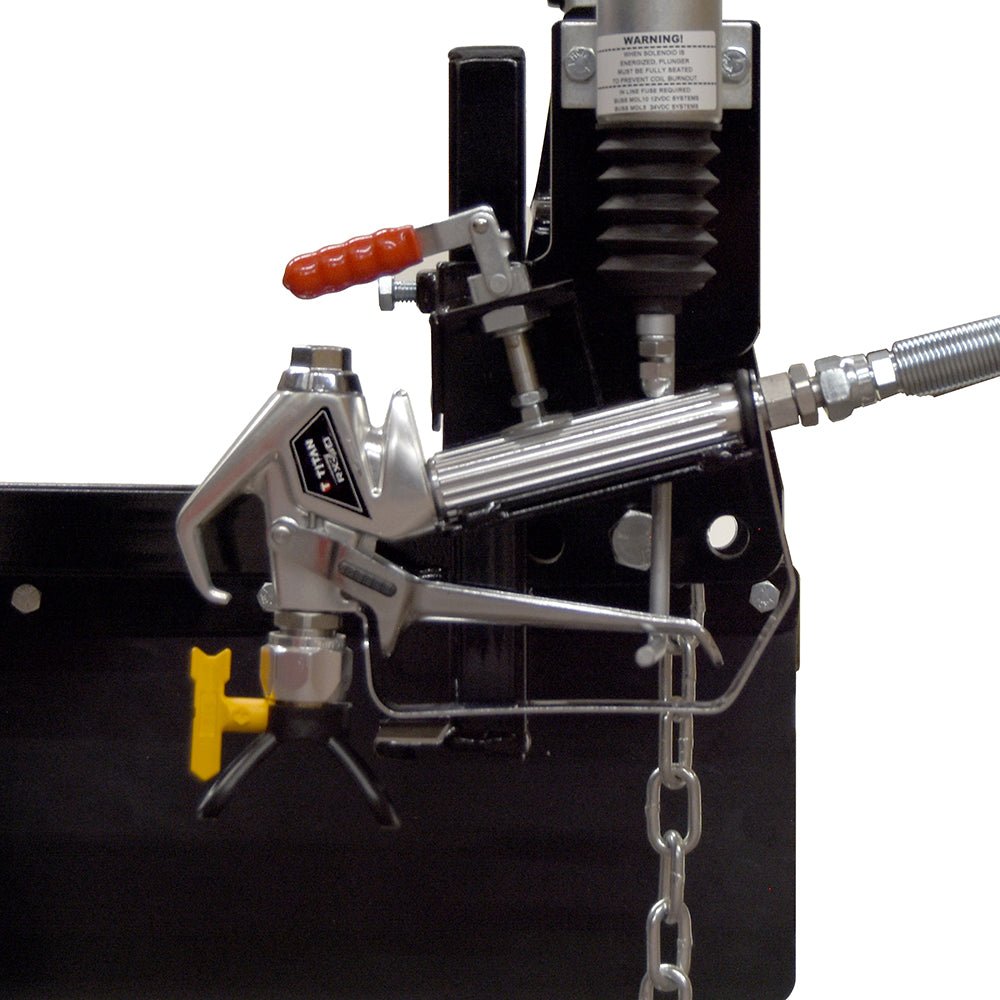

Floating cast gun arm — maintains consistent line width over uneven field surfaces
2.5-gallon onboard purge tank — clean the system in the field in minutes
Installs and removes in under 10 minutes — use your UTV for other jobs when not striping
Compatible with John Deere, Kubota, Ranger, and most standard UTV beds

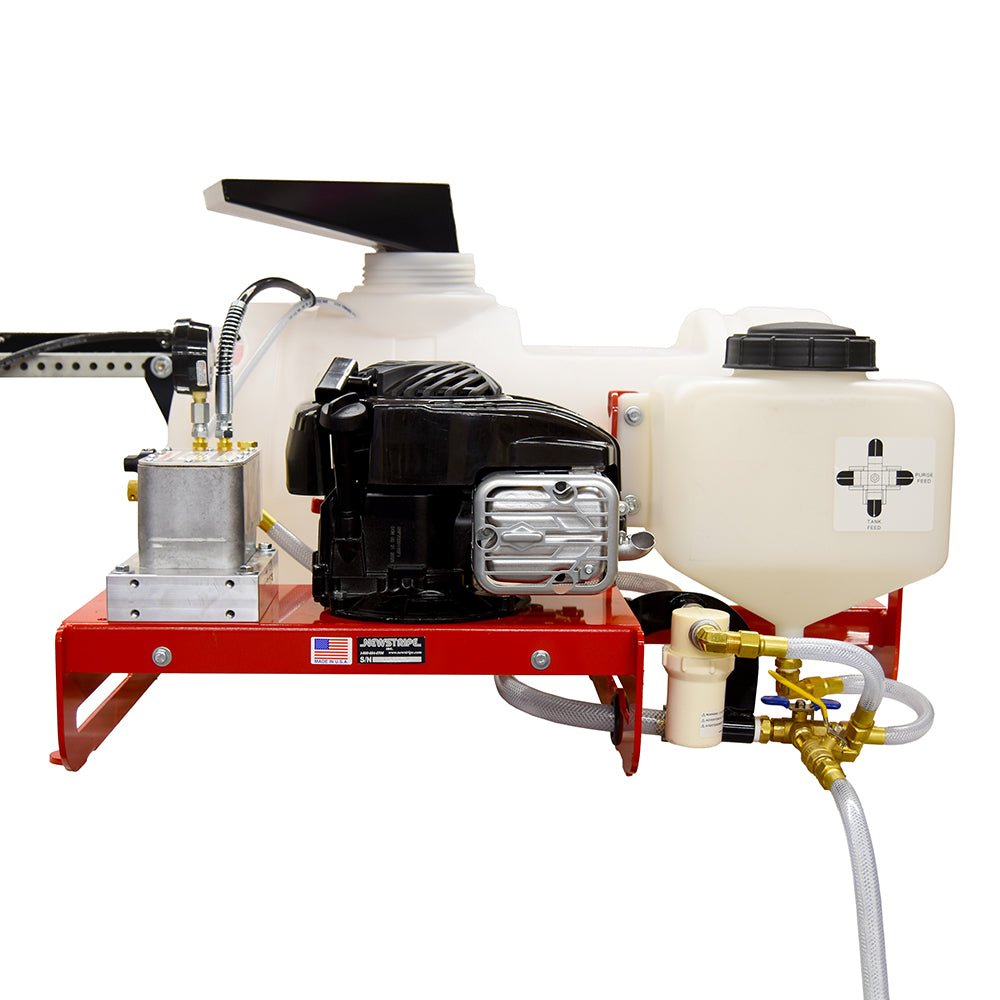

Briggs & Stratton EX 550 engine — dedicated striper power independent of your UTV's motor
36-month warranty, Made in USA
ⓘ UTV not included. Free shipping available. Lead time approx. 15 business days.
See It In Action
Specifications
Item #
10005242
Spray Pump
High Pressure Airless, 0–3000 psi, 0.44 gpm
Line Width
2″ – 6″
Paint Capacity
25 Gallons
Purge Tank
2.5 Gallons (onboard cleanup)
Engine
Briggs & Stratton EX 550
Propulsion
UTV Bed-Mounted (slides into truck/UTV bed)
Max Speed
Up to 8 mph
Weight
178 lbs
Dimensions (Ship)
51″ L × 43″ W × 41″ H
UTV Compatibility
John Deere, Kubota, Ranger & most standard UTVs
Install / Remove
Less than 10 minutes
Warranty
36 Months
Lead Time
~15 Business Days
Origin
Made in USA
