Gared Flick Sleeved Badminton System 6619

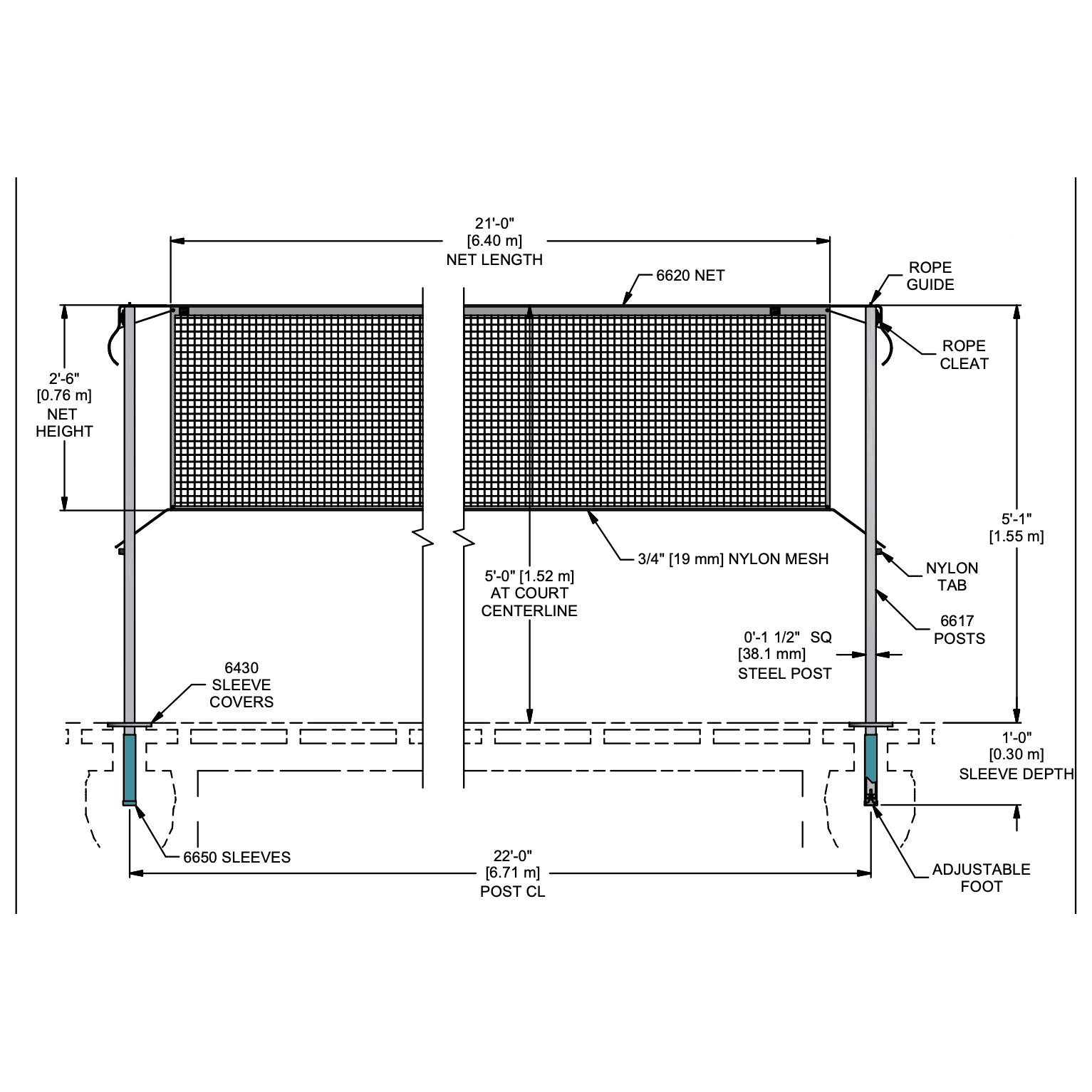

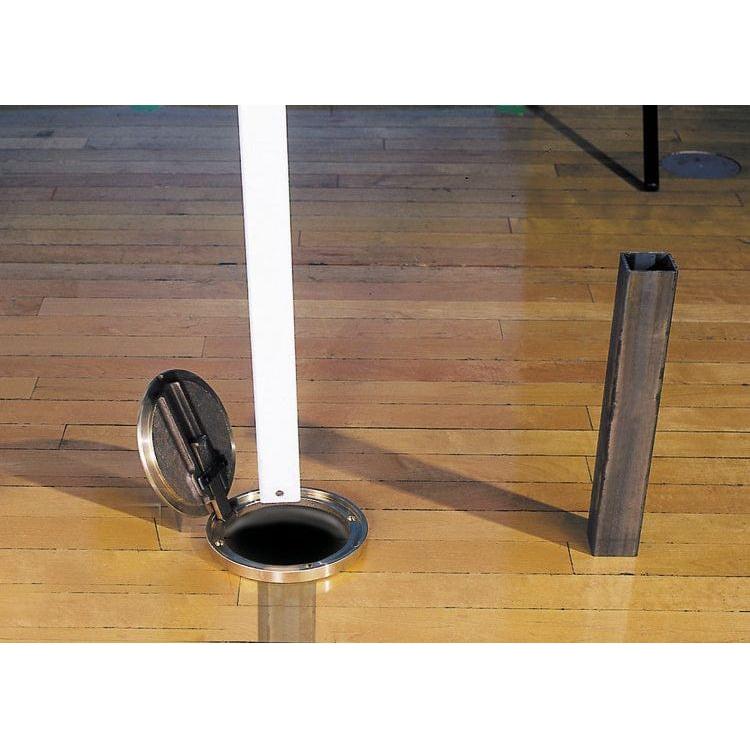

Give the shuttlecock a net to pass over with the 6619 Flick One-Court Sleeved Badminton System. The 6619 badminton system features 1-1/2" square powdercoated white steel uprights with adjustable foot pad for accurate net height and a 21' x 2' 6" regulation net. Floor sleeves with cover plates allow easy removal of posts when not in use. Designed for competition or recreational applications that require easy removal from floor sleeves when not in use. SPECIFICATIONS POSTS The model 6619 Sleeved Badminton System shall consist of two square uprights constructed of 1-1/2” steel tubing, model 6617. The upright shall have an adjustable, protective rubber foot on the bottom and shall have a rope guide at the top for attaching the net. A rope clasp on the post allows quick net tensioning. The uprights shall be powder coated white. NET The model 6620 Badminton Net shall be 21’ in length and 2’-6” tall. The netting shall be constructed of a durable 3/4” nylon mesh with vinyl boarders. The net is designed to connect to post set on 22’-0” centers. FLOOR SLEEVES The model 6650 Floor Sleeves shall be 10 ¼” in length and constructed of heavy-gauge, 1 ¾” square steel tubing. Sleeves shall be set in grout at a dimension of 12” below finished floor. FLOOR COVERS The model 6430 Floor Covers shall be swivel type, brass plated steel. Cover plate shall have a molded plastic recessed mounting flange, cork gasket, and 6 3/16” diameter cover. Molded plastic recessed mounting flange shall be 6 1/2” in diameter and have 3 holes in the ring (for screwing into the floor) that shall be completely co
