Gared Flick Heavy-Duty Sleeved Badminton System 6740

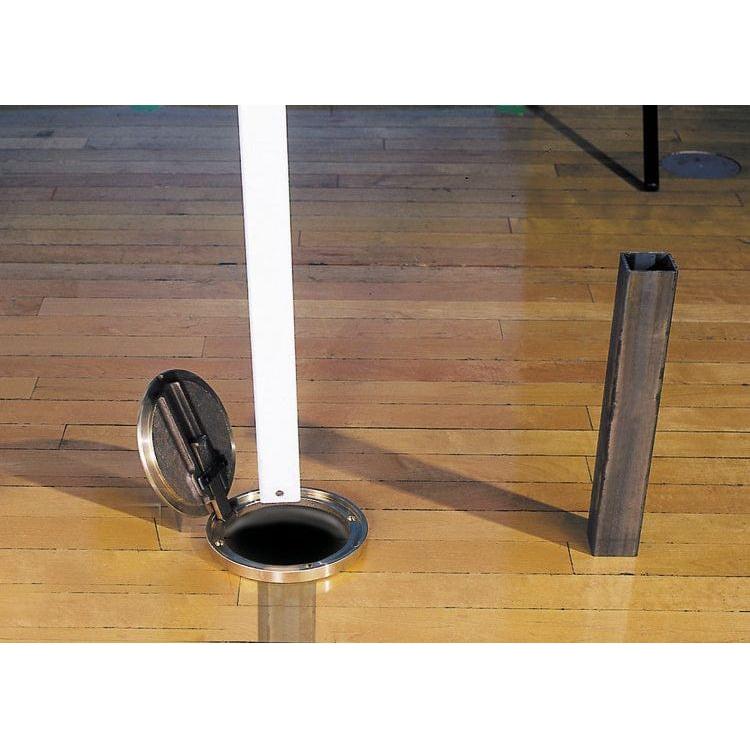

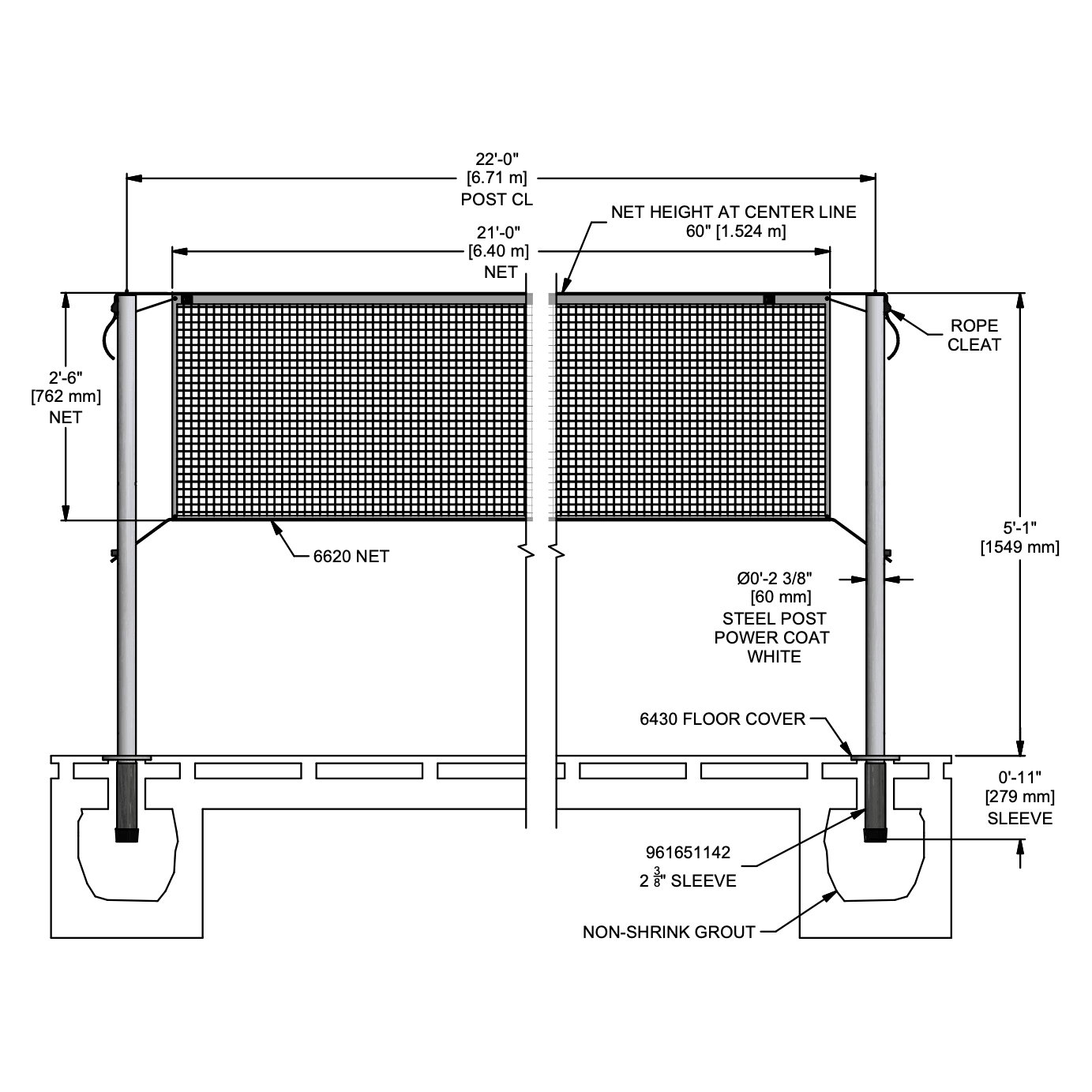

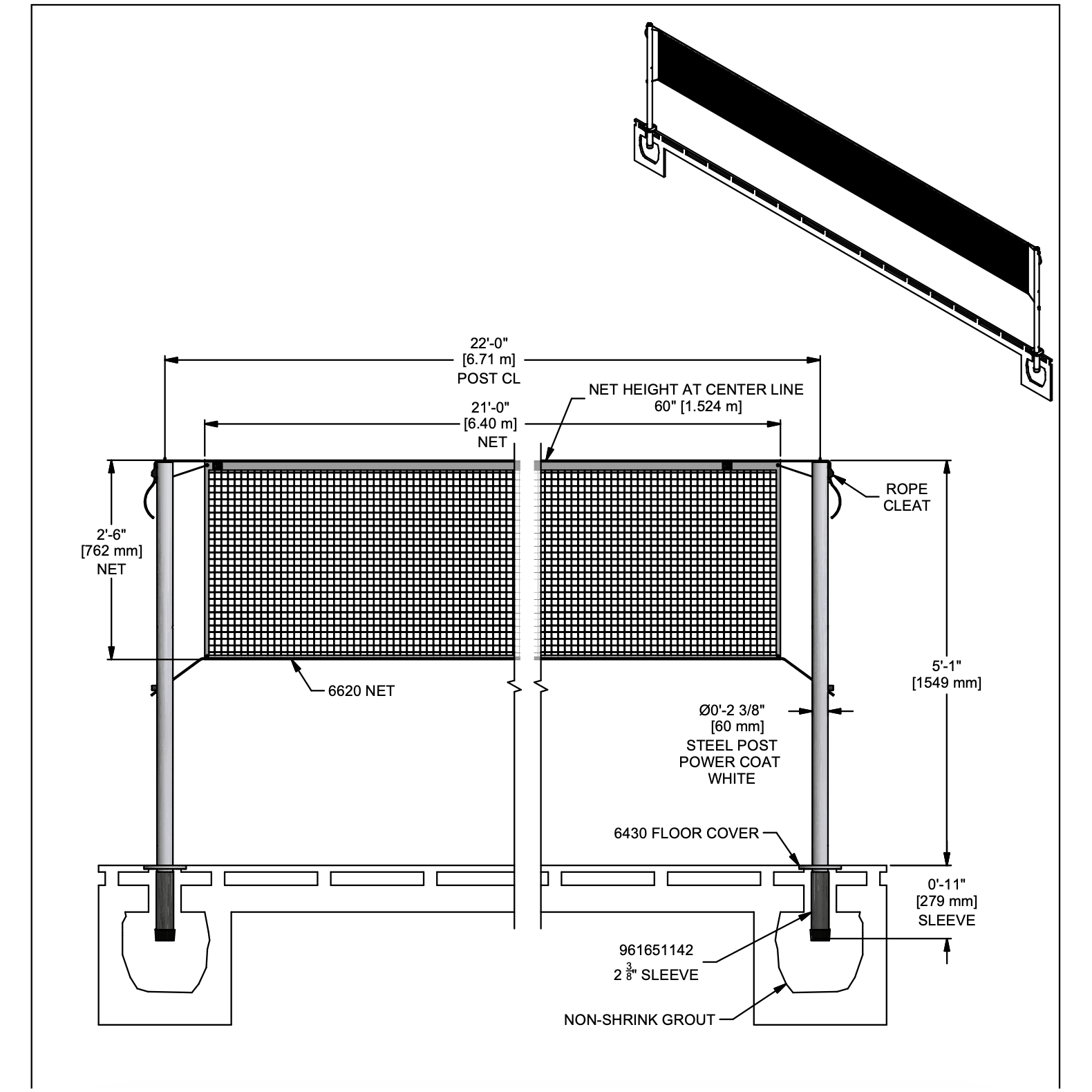

The 6740 Flick One-Court Heavy-Duty Sleeved Badminton System is designed for competition or recreational applications that require the strength of a heavy-duty system. This system features 2-3/8" round powdercoated white steel uprights and a 21' x 2' 6" regulation net. Floor sleeves with cover plates allow easy removal of posts when not in use. Designed for competition or recreational applications that require the strength of a heavy duty badminton system. SPECIFICATIONS POSTS The 6740 in-ground Badminton System shall consist of two round uprights constructed of 2-3/8” [60.3 mm] steel tubing. The uprights shall have a rope clasp at the top for attaching the net and shall be powder coated white. Upright posts shall be set in ground sleeves separated by a centerline distance of 22’-0” [6.706 m]. SLEEVES and FLOOR COVERS The system shall include a pair of sleeves which will cast into the floor at a depth of 11” [279 mm]. Sleeves shall be constructed of 10” [254 mm] long steel tubing. The system shall include a pair of model 6430, 6” brass plated floor covers. NET (model 6620) The net shall be 21’ [6.40 m] in length and 2-1/2’ [0.76 m] tall. The netting shall be constructed of a durable 3/4” [19 mm] black nylon mesh with a sewn white vinyl edge binder.
