Overview

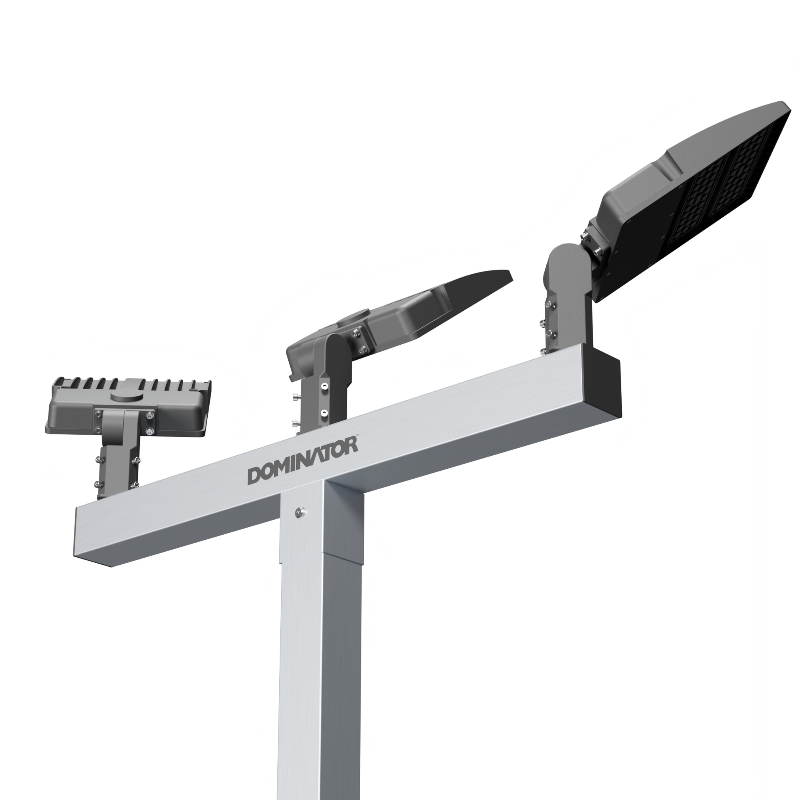

Dominator Sport Court Light System – Full Assembly — Keep playing after the sun goes down. This 16-foot aluminum light pole ships with your choice of LED fixture type, fixture count, and finish — a complete, ready-to-install court lighting solution. Built from 6061 T6 aluminum with a hinging base for easy installation. Available in 150W wired, 300W wired, and 100W solar configurations.
Features
-
16 Ft 6061 T6 Aluminum Pole: Square profile with 4" sides and 0.187" wall thickness — same rust-proof material as the Dominator hoop lineup.
-
Hinging Base Design: Integrated base hinge makes it easy to raise and lower the pole during installation.
-
Choice of Wired or Solar Fixtures: 150W and 300W wired options for maximum brightness; 100W solar for off-grid or no-conduit installations.
-
1, 2, or 3 Fixture Configurations: Choose the coverage that matches your court size and lighting needs.
-
Handhole at 36" AFF: Includes cover and stainless steel bolts — ideal location for an on/off switch.
-
Anchor Bolt Kit Included: Comes with four J-shaped galvanized anchor bolts and all required hardware.
-
Slip-Fitting Top Tenon: 2-3/8" OD aluminum tenon for standard fixture compatibility.
Specifications
-
Pole Height: 16 ft
-
Pole Material: 6061 T6 Aluminum
-
Pole Dimensions: 4" x 4" square, 0.187" wall
-
Pole Weight: ~60 lbs
-
Anchor Bolt Pattern: 10" x 10"
-
Top Tenon: 2-3/8" OD, 4" length
-
Fixture Options: 150W Wired, 300W Wired, 100W Solar
-
Fixture Counts: 1, 2, or 3 (solar: 1 or 2)
-
Finishes: Brushed Aluminum, Black Powder Coat
