Overview

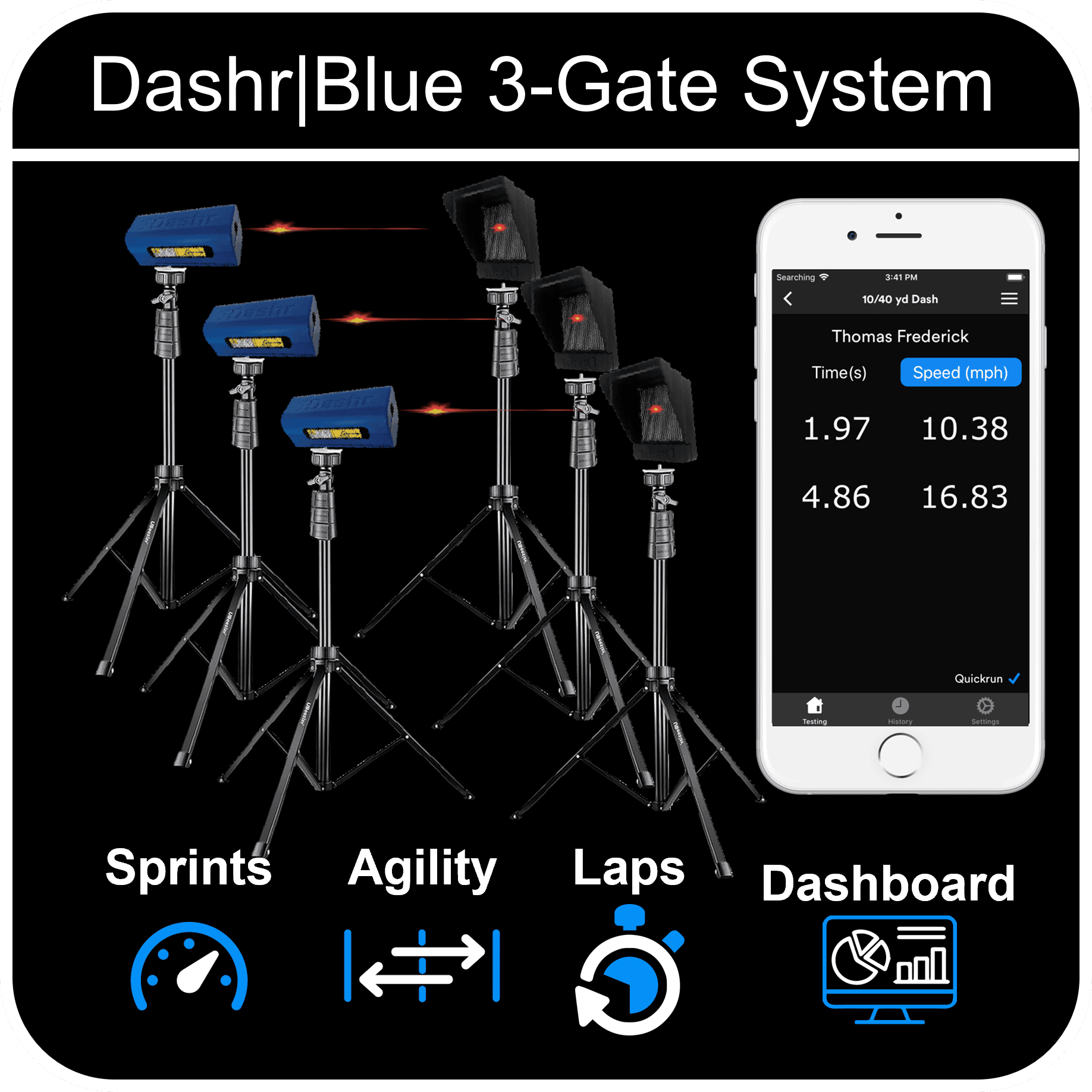

Dashr Blue 3-Gate System — The Dashr Blue timing system delivers professional-grade speed and agility testing with Bluetooth wireless technology, visible light lasers, and retroreflective reflectors. Designed for indoor and outdoor use, the Blue system connects through the Dashr App for fast setup and automatic result syncing to the online Dashboard. The 3-Gate System supports dash and flying drills with splits, pro-agility, T-test, lane agility, lap events, RAST, and allows multiple drills to run simultaneously.

Features

• Bluetooth Wireless Protocol: Improved wireless consistency with effective range up to 60 meters (120 m with select devices).
• Fast App-Based Setup: Connects directly through the Dashr app for faster pairing and saved configurations between sessions.
• High Visibility Blue Case: Blue enclosure for easy identification on the field during testing events.
• Improved Power Switch: Enhanced switch design for reliable on/off operation in the field.
• High Heat Resistive Laser: Laser module designed to withstand outdoor heat conditions.
• Heat Shield Compatible: Add Heat Shields (D112) for each laser when testing outdoors in direct sunlight.
• Visible Light Laser: Small, modular 3×1×1 in laser modules with retroreflective reflectors for accurate beam alignment.
• Adjustable Tripods: Regular tripods extend up to 4 ft; mini tripods force a standard 4-inch start height.
• Dashr App Integration: Operated through the Dashr App (iOS 15.0+ / Android 9.0+); results sync to the online Dashboard.

Specifications

• SKU: B203
• Wireless Range: Up to 60 m (120 m with select devices)
• Wireless Protocol: Bluetooth
• Laser Module Size: 3 × 1 × 1 in (modular, visible light)
• Regular Tripod Height: Adjustable, up to 4 ft
• Mini Tripod Height: 4 in (standard start height)
• Compatible App: Dashr App (iOS 15.0+ / Android 9.0+)
• Use Conditions: Indoor and outdoor (Heat Shields recommended for outdoor)
• Case Size: 18.5 x 14 x 6.25 inches

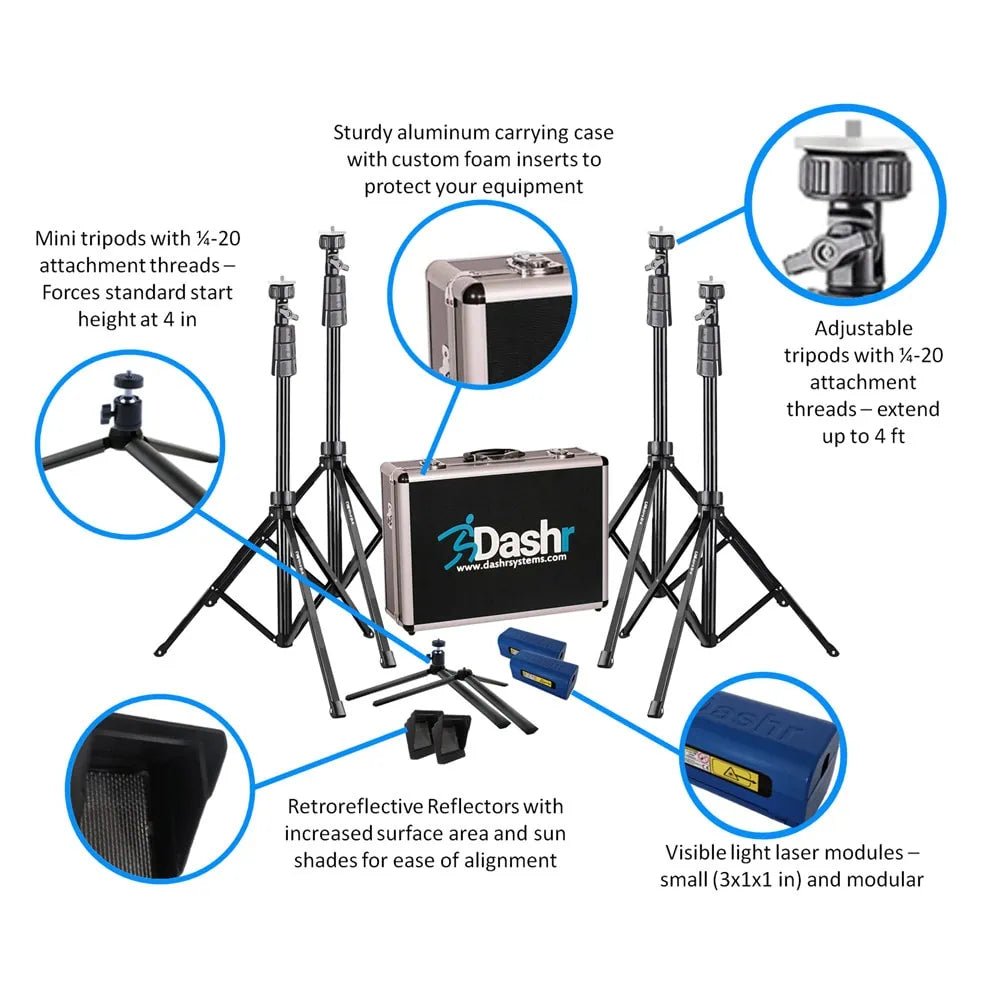

• Contents:
• 3 Laser Modules
• 3 Reflectors
• 6 Regular Tripods
• 2 Mini Tripods
• Online Dashboard for Athlete Data Management

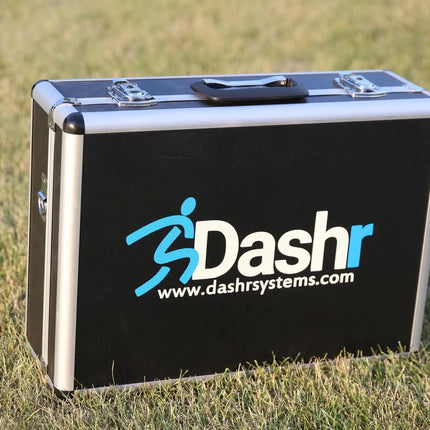

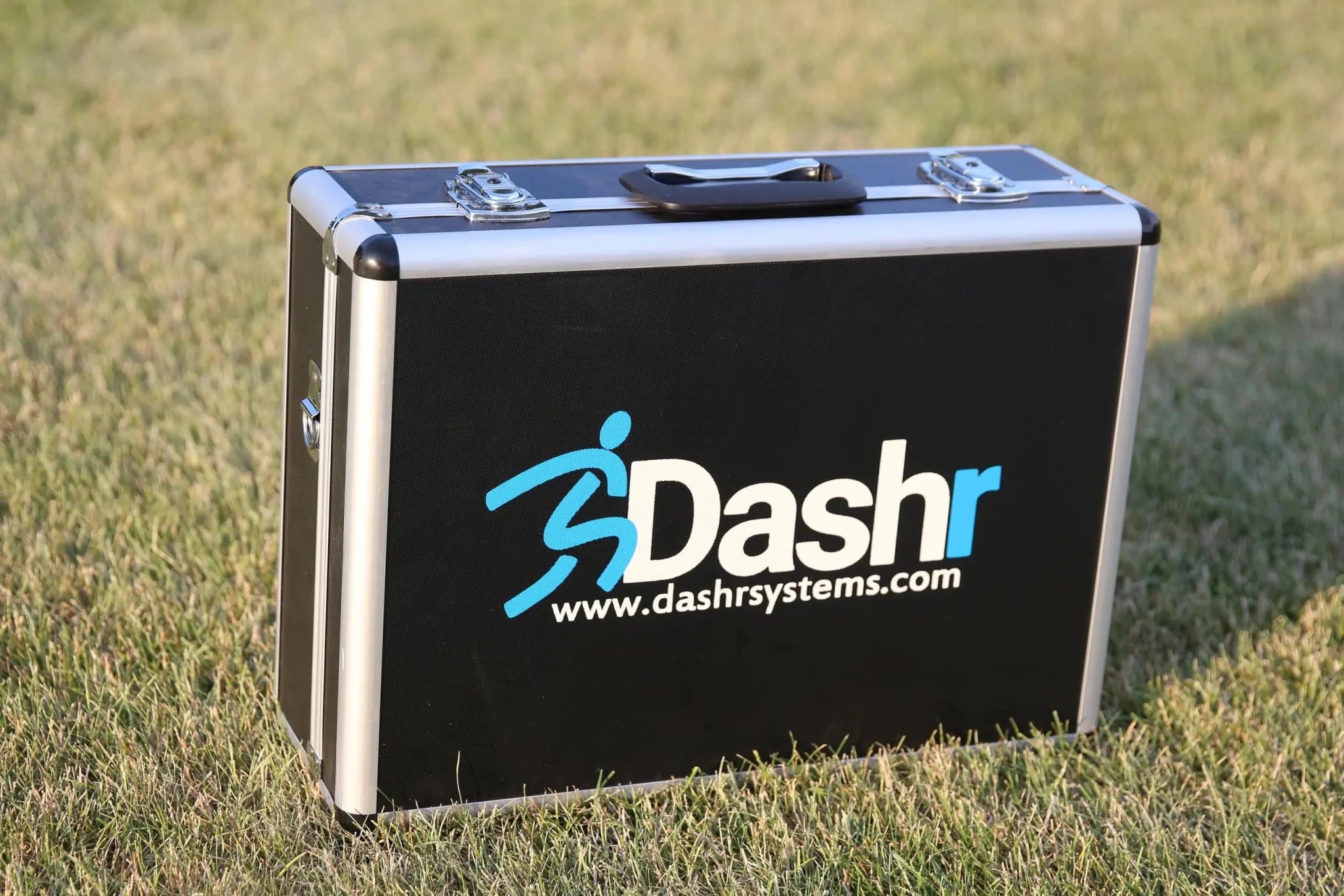

• Aluminum Carrying Case

Comparison

*Range is dependent on the user's device capabilities.

Warranty

• Learn more: View the Dashr Systems Warranty Policy
